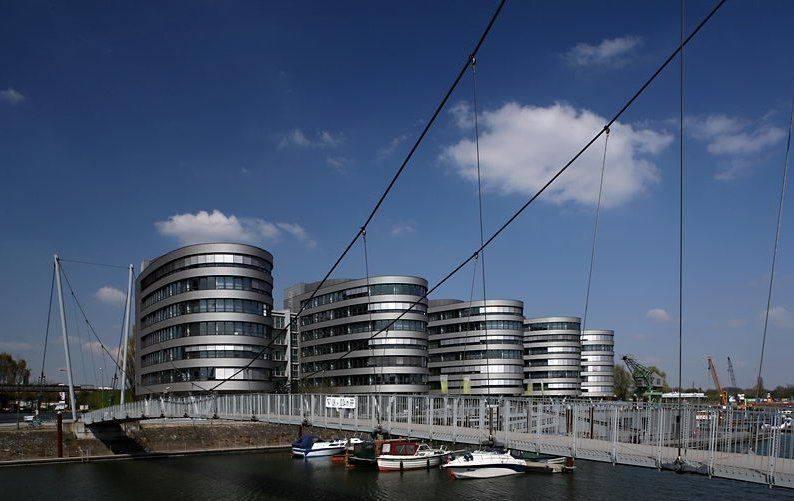

Bridge with the Five Boats office building in the background

Masts and hydraulic cylinders of the bridge

Bridge with the Five Boats office building in the background

Steg Innenhafen Duisburg

Am Springwall, 47059 Duisburg



Schlaich Bergermann und Partner

INNENHAFEN DUISBURG Entwicklungsgesellschaft mbH

bookmark project | Bookmarks/Route planner (0)

This website uses Google Maps to integrate maps. Please note that personal data can be recorded and collected here. To see the Google Maps map, please consent to it being loaded from the Google server. You can find more information here.

Total projects: 484

Full-text search:

Search projects:


Advanced search with more criteria

Total projects: 484

Steg Innenhafen Duisburg

The pedestrian and cycle bridge erected in the course of the conversion of Duisburg Innenhafen (inner port) crosses a harbour and connects Altstadtpark with newly planned greens.
The re-anchored suspension bridge has a span of 73m.
The 3.5m-wide bridge can be raised to 10.6m above normal to keep the harbour navigable by hydraulically tipping the masts outward, so that the chain structure of the bridge “bends” upward.
Additional elements, during normal operations found in the foundation pockets, are then pulled out in order to stretch the structure by the 3.65m required.

Author: Editorial baukunst-nrw
Last changed on 04.08.2008


Engineering » Transportation
